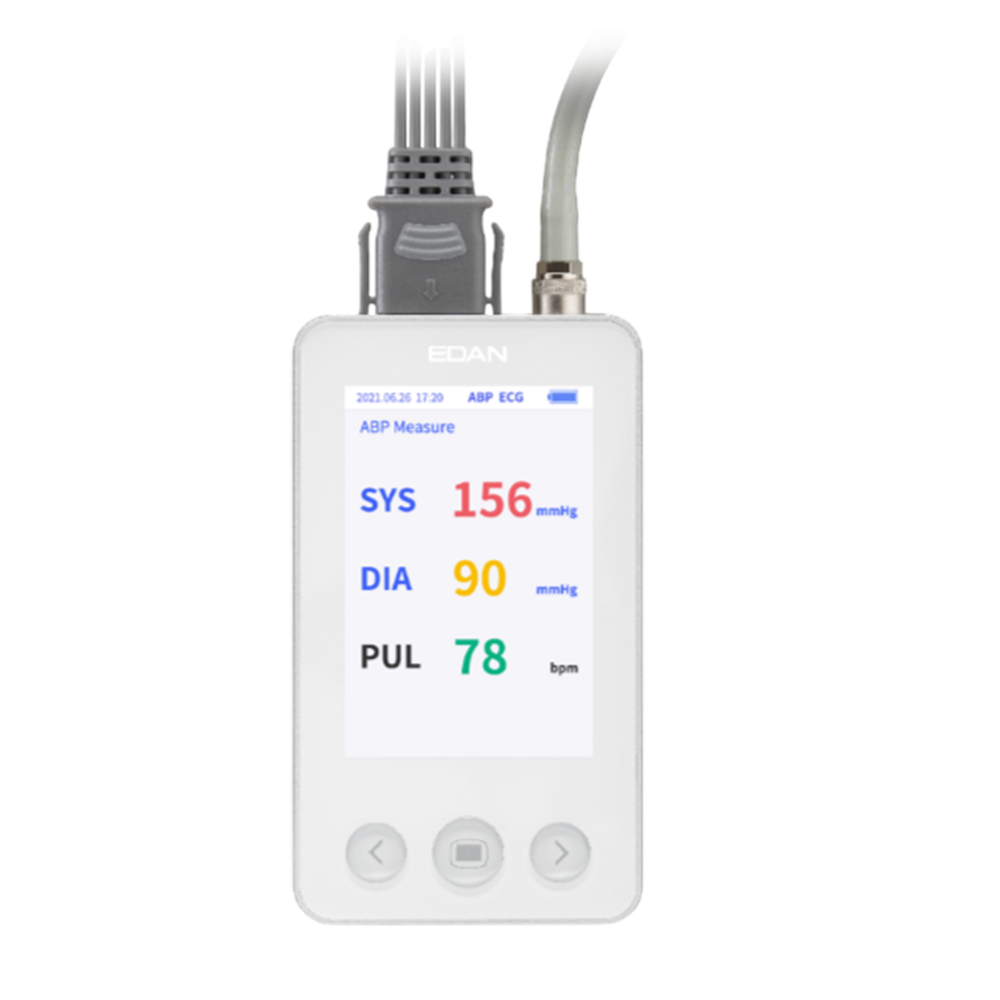

Edan SA20 Holter – ABPM

Holter ECG and ABP 2-in-1

2-in-1 Recorder

Up to 24 hours Holter ECG and Ambulatory Blood Pressure can be measured simultaneously by a 2-in-1 recorder. There is no need to wear two recorders which greatly reduces the burden and increases comfort for patients.

Powerful Integration

All the functions of single Holter ECG and ABPM can be found in SA-20. In addition to Holter ECG and ABP 2-in-1 measurement, the SA-20 can also be served as an independent Holter ECG or ABPM for different clinical demand.

Category: Others

Description

Compact & Ergonomic Design

Lightweight Design

The lightweight (160g) and pocket size makes EDAN Holter ECG and ABP 2-in-1 Recorder easy to carried without bothering patient’s daily routine. With the smooth surface and the streamline modeling, it fits into the palm perfectly.

Brand New UI Design
LCD Display and Advanced UI Design

The recorder applies 3.5-inch LCD screen and very intuitive UI, through which you can see the ECG waveforms and blood pressure details at one glance.

Neuromascular Ultrasound is the ideal adjunctive modality that can provide invaluable anatomic correlation to EMG electrophysiology.

-Jeffrey A. Strakowski, MD

Technical features and display functions

Image Enhancement

Automatic frequency-adjustment preset
Edge enhancement
Advanced speckle reduction
Spatial compounding
Tissue harmonic scanning
Trapezoid view
Post-treatment speckle imaging SIE enhancement
Offline analysis

Measurements

Distance
Ellipse with perimeter & area
Free hand drawing (contour) with perimeter & area

Display/Operating Modes

B-mode
M-mode
Color flow mapping (CFM)
Power doppler
Pulse wave doppler

Additional features

Retina+ screen for optimized contrast and structure differentiations
Full HD screen with 1280×800 resolution
BEAMFORMER 820Pro 10nm processor for fast frame rate and smoother scan videos
12 seconds maximum startup time
Up to 2.5 hours battery time in scanning mode
Lightweight design
Easily interchangeable probes
Auto-focus
0.1 cm depth resolution
Standard USB and HDMI connectors

Work Mode

Flexible Work Mode Switch

SA-20 provides three work modes, ABP+ECG, ECG, and ABP according to clinical demand. It’s easy to switch work mode from one to another.

ECG Performance

High Sampling Rate
The high sampling rates up to 25.6 kHz ensures sampling accuracy specially for patient who wears pacemaker.

Interference Resistance
SA-20 has applied the advanced anti-interference technique and design to guarantee the accurate ECG signal and the performance of interference resistance.

Pacemaker Detection
EDAN applies the advanced technique of simultaneous multi-channel Pacemaker detection by the high sampling rate. Combining with the software pacemaker analysis, SA-20 bring doctors confidence on making diagnosis.

Auto 3/12-channel Identification

SA-20 supports both 3-channel and 12-channel sampling. With the auto identification of 5/7/10-electrode cables, SA-20 can switch into corresponding sampling mode automatically.

BP Performance

Large ABP Measuring Range
The overall blood pressure measurement range of SA-20 is as large as 10 mmHg to 290 mmHg.

Comfort

Intelligent Pressurization

With the help of self-adaptive measuring technology, the patient feels more comfortable during BP testing.

Low Power Consumption

Long Working Time
SA-20 is designed with low power consumption, which improves the efficiency and saves the cost.

Low Power Consumption

Long Working Time
SA-20 is designed with low power consumption, which improves the efficiency and saves the cost.

Safety

Overtime and Overpressure Protection
SA-20 is capable of overtime and overpressure protection to avoid the accidental hurt during long-time blood pressure monitoring.

Protective Redundancy
SA-20 has dual sensors and valves to protect the patient’s safety. It works normally even when one sensor or valve is defective. Never bring any harm to the patient.

Water and Dust proof

Waterproof Performance
SA-20 recorder reaches IP22 protection grade, intending to prevent unexpected damages from water and dust, which maximizes patients’ freedom in their daily life. The waterproof capability facilitates the cleaning and disinfection procedure as well.
